Django-Rest-Framework源码流程

发表于 | 分类于
字数统计: 1.5k | 阅读时长 ≈ 7

一

请求到来之后，都要先执行dispatch方法，dispatch方法方法根据请求方式的不同触发get/post/put/delete等方法

注意：APIView中的dispatch方法有很多功能

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
def dispatch(self, request, *args, **kwargs):
        """
        `.dispatch()` is pretty much the same as Django's regular dispatch,
        but with extra hooks for startup, finalize, and exception handling.
        """
        self.args = args
        self.kwargs = kwargs
        第一步：对request进行加工（添加数据）
        request = self.initialize_request(request, *args, **kwargs)
        self.request = request
        self.headers = self.default_response_headers  # deprecate?

        try:
            #第二步：
                #处理版权信息
                #认证
                #权限
                #请求用户进行访问频率的限制
            self.initial(request, *args, **kwargs)

            # Get the appropriate handler method
            if request.method.lower() in self.http_method_names:
                handler = getattr(self, request.method.lower(),
                                  self.http_method_not_allowed)
            else:
                handler = self.http_method_not_allowed

            # 第三步、执行：get/post/put/delete函数
            response = handler(request, *args, **kwargs)

        except Exception as exc:
            response = self.handle_exception(exc)

        #第四步、 对返回结果再次进行加工
        self.response = self.finalize_response(request, response, *args, **kwargs)
        return self.response

二

上面是大致步骤，下面我们来具体分析一下，看每个步骤中都具体干了什么事

对request进行加工（添加数据）

我们看看request里面都添加了那些数据

a

首先  request = self.initialize_request(request, *args, **kwargs)

点进去，会发现：在Request里面多加了四个，如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
def initialize_request(self, request, *args, **kwargs):
    """
    Returns the initial request object.
    """
    #吧请求弄成一个字典返回了
    parser_context = self.get_parser_context(request)

    return Request(
        request,
        parsers=self.get_parsers(),  #解析数据，默认的有三种方式，可点进去看
        #self.get_authenticator优先找自己的，没有就找父类的
        authenticators=self.get_authenticators(), #获取认证相关的所有类并实例化，传入request对象供Request使用
        negotiator=self.get_content_negotiator(),
        parser_context=parser_context
    )

b

获取认证相关的类的具体
authenticators=self.get_authenticators()

1
2
3
4
5
6
def get_authenticators(self):
        """
        Instantiates and returns the list of authenticators that this view can use.
        """
        #返回的是对象列表
        return [auth() for auth in self.authentication_classes]  #[SessionAuthentication,BaseAuthentication]

c

查看认证的类：self.authentication_classes

1
authentication_classes = api_settings.DEFAULT_AUTHENTICATION_CLASSES  #默认的，如果自己有会优先执行自己的

d

接着走进api_settings

1
api_settings = APISettings(None, DEFAULTS, IMPORT_STRINGS)  #点击继承的DEFAULTS类
1
2
3
4
5
6
DEFAULTS = {
    # Base API policies
    'DEFAULT_AUTHENTICATION_CLASSES': (
        'rest_framework.authentication.SessionAuthentication',   #这时候就找到了他默认认证的类了，可以导入看看
        'rest_framework.authentication.BasicAuthentication'
    ),

e

导入了类看看类里面具体干了什么

1
2
from rest_framework.authentication import SessionAuthentication
from rest_framework.authentication import BaseAuthentication

f

看到里面有个authenticate方法和authenticate_header方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

class BaseAuthentication(object):
    """
    All authentication classes should extend BaseAuthentication.
    """

    def authenticate(self, request):
        """
        Authenticate the request and return a two-tuple of (user, token).
        """
        raise NotImplementedError(".authenticate() must be overridden.")

    def authenticate_header(self, request):
        """
        Return a string to be used as the value of the `WWW-Authenticate`
        header in a `401 Unauthenticated` response, or `None` if the
        authentication scheme should return `403 Permission Denied` responses.
        """
        pass

具体处理认证，从headers里面能获取用户名和密码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
class BasicAuthentication(BaseAuthentication):
    """
    HTTP Basic authentication against username/password.
    """
    www_authenticate_realm = 'api'

    def authenticate(self, request):
        """
        Returns a `User` if a correct username and password have been supplied
        using HTTP Basic authentication.  Otherwise returns `None`.
        """
        auth = get_authorization_header(request).split()

        if not auth or auth[0].lower() != b'basic':
            return None   #返回none不处理。让下一个处理

        if len(auth) == 1:
            msg = _('Invalid basic header. No credentials provided.')
            raise exceptions.AuthenticationFailed(msg)
        elif len(auth) > 2:
            msg = _('Invalid basic header. Credentials string should not contain spaces.')
            raise exceptions.AuthenticationFailed(msg)

        try:
            auth_parts = base64.b64decode(auth[1]).decode(HTTP_HEADER_ENCODING).partition(':')   #用partition切割冒号也包括
        except (TypeError, UnicodeDecodeError, binascii.Error):
            msg = _('Invalid basic header. Credentials not correctly base64 encoded.')
            raise exceptions.AuthenticationFailed(msg)

        userid, password = auth_parts[0], auth_parts[2]  # 返回用户和密码
        return self.authenticate_credentials(userid, password, request)

    def authenticate_credentials(self, userid, password, request=None):
        """
        Authenticate the userid and password against username and password
        with optional request for context.
        """
        credentials = {
            get_user_model().USERNAME_FIELD: userid,
            'password': password
        }
        user = authenticate(request=request, **credentials)

        if user is None:
            raise exceptions.AuthenticationFailed(_('Invalid username/password.'))

        if not user.is_active:
            raise exceptions.AuthenticationFailed(_('User inactive or deleted.'))

        return (user, None)

    def authenticate_header(self, request):
        return 'Basic realm="%s"' % self.www_authenticate_realm

g

当然restfulframework默认定义了两个类。我们也可以自定制类，
自己有就用自己的了，自己没有就去找父类的了，
但是里面必须实现authenticate方法，不然会报错。

进行以下操作

  • 处理版权信息
  • 认证
  • 权限
  • 请求用户进行访问频率的限制

我们主要来看一下认证流程：

a

首先 self.initial(request, *args, **kwargs)可以看到做了以下操作

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
def initial(self, request, *args, **kwargs):
        """
        Runs anything that needs to occur prior to calling the method handler.
        """
        self.format_kwarg = self.get_format_suffix(**kwargs)

        # Perform content negotiation and store the accepted info on the request
        neg = self.perform_content_negotiation(request)
        request.accepted_renderer, request.accepted_media_type = neg

        # Determine the API version, if versioning is in use.
        #2.1 处理版本信息
        version, scheme = self.determine_version(request, *args, **kwargs)
        request.version, request.versioning_scheme = version, scheme

        # Ensure that the incoming request is permitted
        #2.2 认证
        self.perform_authentication(request)
        # 2.3 权限
        self.check_permissions(request)
        # 2.4 请求用户进行访问频率的限制
        self.check_throttles(request)

b

我们先来看认证，self.perform_authentication(request)
具体干了什么，按住ctrl点击进去

1
2
3
4
5
6
7
8
9
def perform_authentication(self, request):
        """
        Perform authentication on the incoming request.

        Note that if you override this and simply 'pass', then authentication
        will instead be performed lazily, the first time either
        `request.user` or `request.auth` is accessed.
        """
        request.user   #执行request的user，这是的request已经是加工后的request了

c

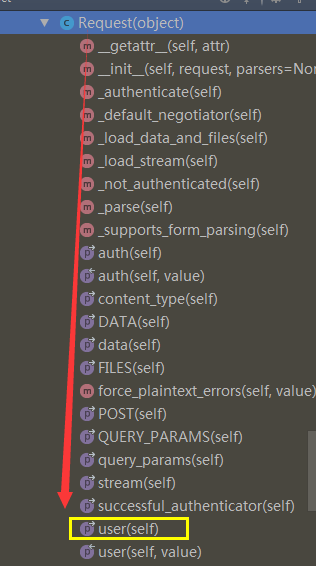

那么我们可以从视图里面导入一下Request，找到request对象的user方法

1
from rest_framework.views import Request
1
2
3
4
5
6
7
8
9
10
@property
    def user(self):
        """
        Returns the user associated with the current request, as authenticated
        by the authentication classes provided to the request.
        """
        if not hasattr(self, '_user'):
            with wrap_attributeerrors():
                self._authenticate()  #
        return self._user  #返回user

d

执行self._authenticate() 开始用户认证，
如果验证成功后返回元组： (用户,用户Token)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
def _authenticate(self):
        """
        Attempt to authenticate the request using each authentication instance
        in turn.
        """
        #循环对象列表
        for authenticator in self.authenticators:
            try:
                #执行每一个对象的authenticate 方法
                user_auth_tuple = authenticator.authenticate(self)
            except exceptions.APIException:
                self._not_authenticated()
                raise

            if user_auth_tuple is not None:
                self._authenticator = authenticator
                self.user, self.auth = user_auth_tuple  #返回一个元组，user，和auth，赋给了self,
                # 只要实例化Request，就会有一个request对象，就可以request.user,request.auth了
                return

        self._not_authenticated()

e

在user_auth_tuple = authenticator.authenticate(self) 进行验证，
如果验证成功，执行类里的authenticatie方法

f

如果用户没有认证成功：self._not_authenticated()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
def _not_authenticated(self):
        """
        Set authenticator, user & authtoken representing an unauthenticated request.

        Defaults are None, AnonymousUser & None.
        """
        #如果跳过了所有认证，默认用户和Token和使用配置文件进行设置
        self._authenticator = None  #

        if api_settings.UNAUTHENTICATED_USER:
            self.user = api_settings.UNAUTHENTICATED_USER() # 默认值为：匿名用户AnonymousUser
        else:
            self.user = None  # None 表示跳过该认证

        if api_settings.UNAUTHENTICATED_TOKEN:
            self.auth = api_settings.UNAUTHENTICATED_TOKEN()  # 默认值为：None
        else:
            self.auth = None

    # (user, token)
    # 表示验证通过并设置用户名和Token；
    # AuthenticationFailed异常

执行get/post/delete等方法

对返回结果在进行加工
